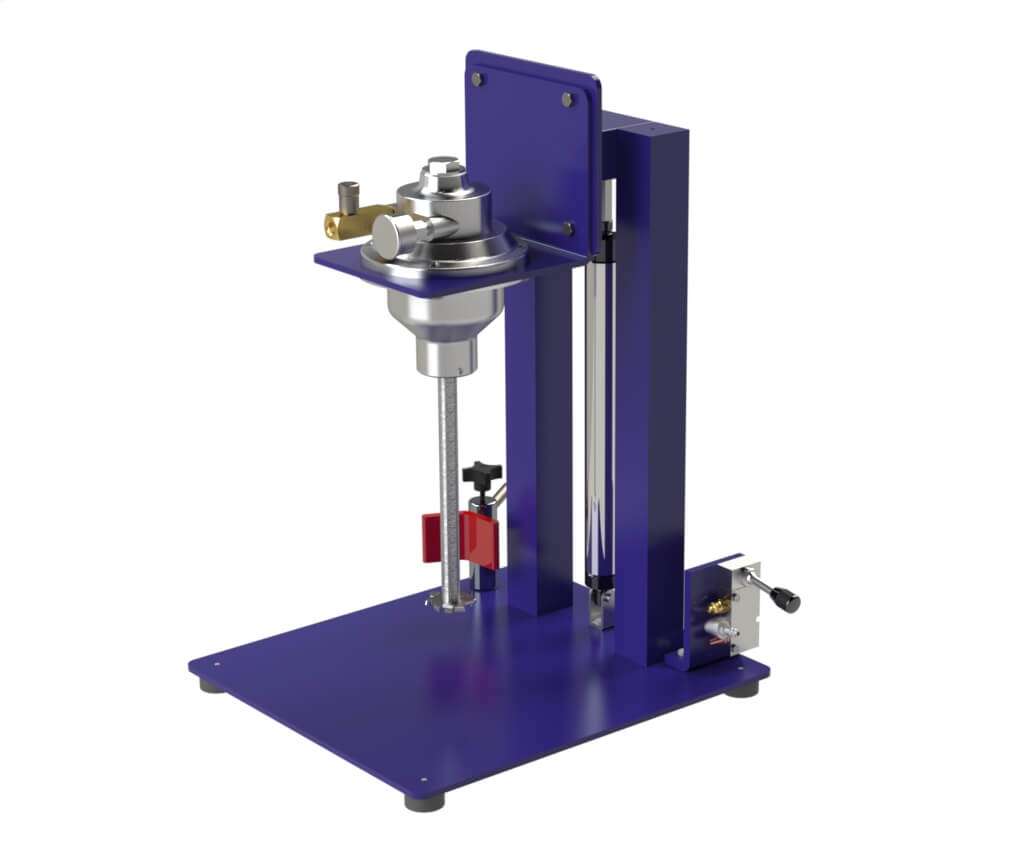

1.5HP IMC-A Air Motor, Laboratory Workbench Disperser, Supports Up To 5 Gal Containers, Air Lift

$5,609.00

Lead Time: 4-6 Weeks
IMC Part: 4624150-7000 Categories: , ,

Description

The New IMC-A Recently Developed by our Process Engineers. The IMC-A series of Laboratory Workbench or bench top dispersers is the most robust, reliable, and complete benchtop disperser series in the industry today! With a capacity from 200 mL up to 5 Gal, these series of lab dispersers offer excellent reproducibility when looking to scale up to a full-scale production providing precise forecasting of performance of higher output IMC Mixer machines under a full-scale production condition. A wide range of dispersion blades are available for all IMC high shear benchtop mixers to accommodate the requirements of the application. Changing from one blade to another is quick and simple. The mixing unit can be effortlessly raised and lowered at any height with an air lift system that moves the dispersion blade out of the mixing container. The speed is controlled by a keypad that includes an RPM read out to maximize efficiency and repeatability of the process. The new designed IMC-A high shear bench top disperser with air motor will operate from 0 to 3000 RPM. The IMC-A lab units with electric motor will operate from 0-5000RPM. Vessel up to 15” in height can be used on all IMC-A series. If larges units are required, please look at the IMC-B and IMC-C series of High Shear Mixers. Industrial Mixers and Controls has been proudly serving the coatings, chemicals, inks, adhesives, pharmaceuticals, foods, and cosmetics industries since 1968. Please contact our Sales Engineer Team if you have any questions (973-278-8776)

Specifications

IMC Part

4624150-7000

IMC Model

IMC-A-15AA

Track Inventory

Yes

HP

1.5

Speed Controller

Yes

Motor Type

Air

Air Motor Spec

30CFM @ 100PSI

Impeller Type

HSF

Impeller Diameter

3"

Impeller Attachment

Bolt On

Impeller Material

304 SS

Number of Impeller

1

Lift Type

Air

Air Lift Specs

100PSI

Blade Attach Bolt

3/8-16

Lift Height

12"

Max Vessel Height

24"

Mount

Post

RPM

300-3000

Shaft Diameter

0.75"

Shaft Attachement

Integrated

Shaft Length (in)

12"

Shaft Material

316 SS

Throat Depth

6"

Lowered Height

25.3"

Max Height

37.3"
