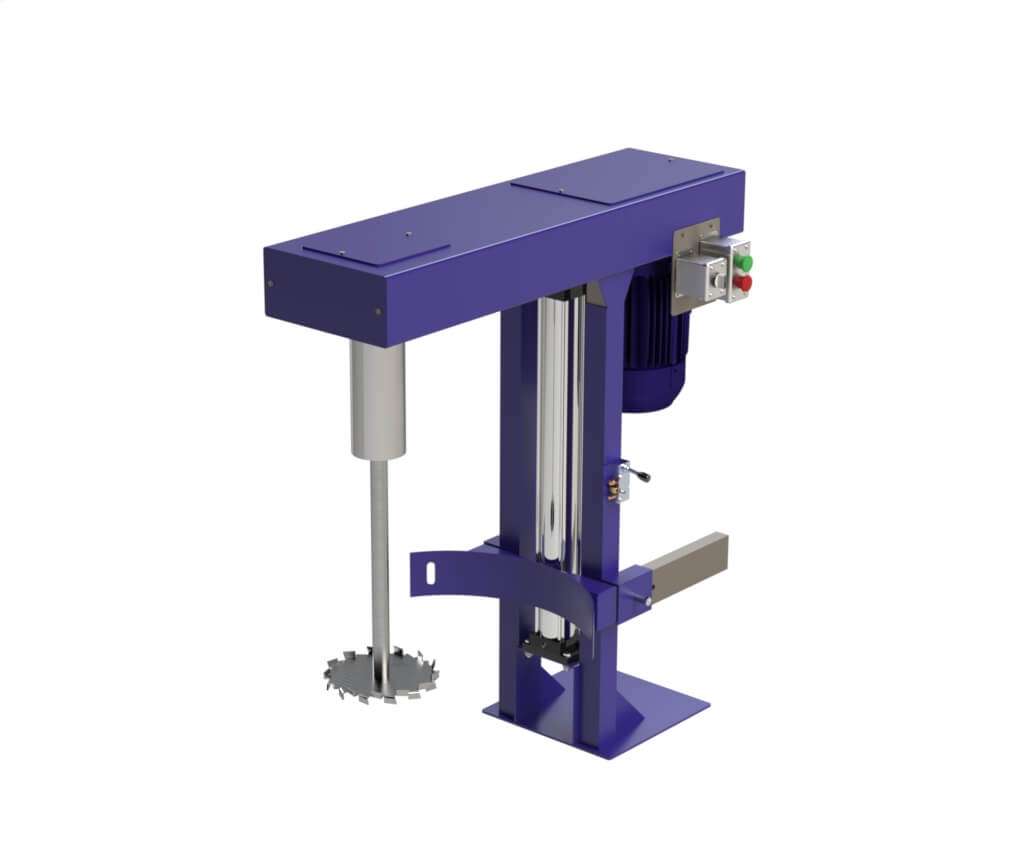

10HP IMC-C Electric Explosion Proof High Speed Disperser, Supports Up To 55 Gal, Air Lift

$16,383.00

Lead Time: 4-6 Weeks

Description

The New IMC-C has it all! The best value high-speed disperser in the industry for 55-gallon drums. Look no further! The new IMC-C models have been developed by our Engineers with Mechanical Power in mind, for mixing coatings, cosmetics, inks and more. To find the required horsepower, you need to divide your container volume by 10 (products less than 15,000 cPs). For instance, a 50-gallon batch would require a 5hp disperser. The new IMC-C can accommodate 40-inch diameter vessels at a 37-inch lift. The air lift system utilizes a 3-way air valve that allows to move the dispersion blade to any position. The speed is controlled by a Washdown (NEMA 4X) touch keypad that includes an RPM read out to maximize efficiency. All electric motor models include a variable speed controller (VFD) and can be optioned to an explosion proof variation. IMC offers a variety of options including, Keypad extension for remote installation, container safe holding system, faster speeds or higher torque configurations, explosion proof tachometers, and options on lift heights. Industrial Mixers and Controls has been proudly serving the coatings, chemicals, inks, adhesives, pharmaceuticals, foods, and cosmetics industries since 1968. Please contact our Sales Engineer Team if you have any questions (973-278-8776)

Specifications

IMC Part

4624100-3000

IMC Model

IMC-C-10XVA

Track Inventory

Yes

HP

10

Speed Controller

Yes

Motor Type

XP-TEFC

Impeller Type

HSF

Impeller Diameter

10"

Impeller Attachment

Bolt On

Impeller Material

304 SS

Number of Impeller

1

Lift Type

Air

Enclosure Type

IC411

Phase

3

Air Lift Specs

100PSI

Blade Attach Bolt

5/8-11

Lift Height

37"

Rated Current

25.6 A

Max Vessel Height

38"

Mount

Post

RPM

190-1900

Shaft Diameter

1.5"

Shaft Attachement

Integrated

Shaft Length (in)

36"

Shaft Material

316 SS

Throat Depth

19"

Lowered Height

53"

Max Height

89"

Voltage

460V
