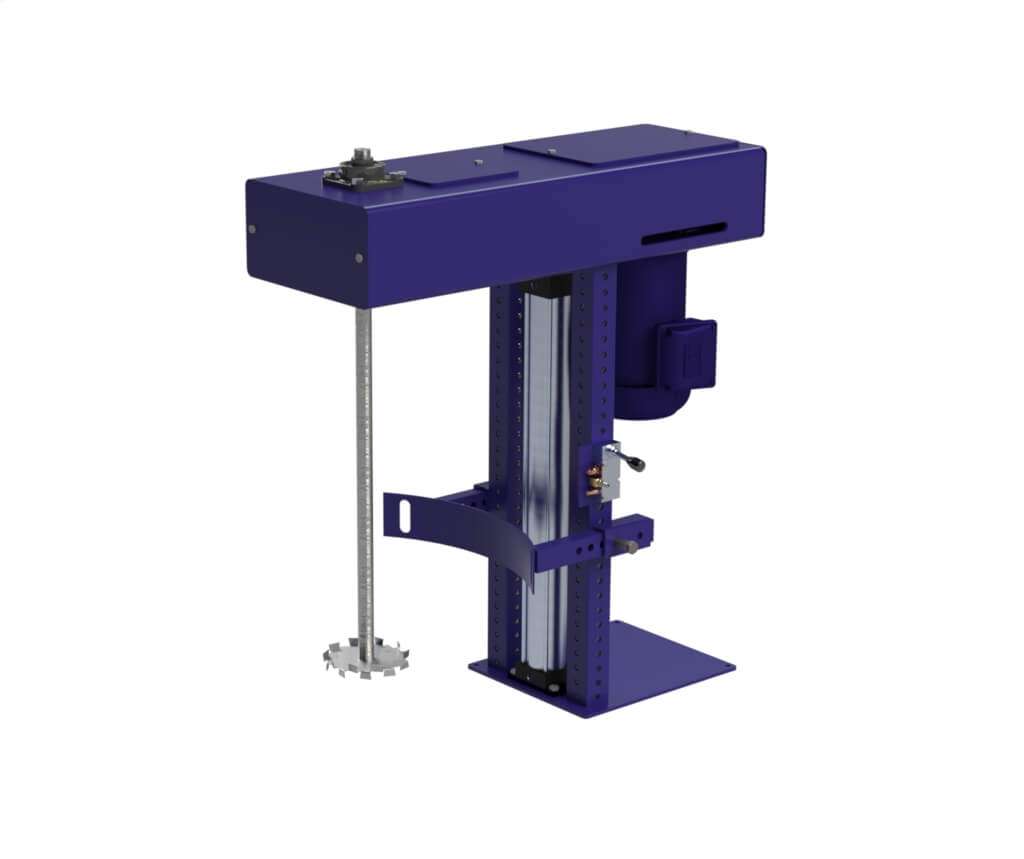

1HP IMC-B Electric TEFC High Speed Disperser, Supports Up To 20 GAL Containers, Air Lift

$6,526.00

Lead Time: 4-6 Weeks

Description

The new IMC-B line of pilot mount disperser is the most reliable in the industry for containers between 5-20 gallons. Look no further! The new IMC-B models have been developed for this specific volume. Our customers enjoy the fact that they now have a cost-effective option between a Lab unit and a large floor mount disperser. The new IMC-B line offers a 24” lift to allow operators to move the high shear dispersion blade in and out of the mix. Additionally, the bolt on blade attachment allows operators to easily and rapidly change between blades. All electric motor models include a variable speed controller (VFD) and can be optioned to an explosion proof variation. Standard units in the IMC-B line of dispersers operate between 0 and 5000 rpm. Air motor models will include a speed control valve, and muffler. The air lift system utilizes a 3-way air valve that allows to move the dispersion blade to any position. The speed is controlled by a keypad that includes an RPM read out to maximize efficiency. Options available are, Keypad extention for remote installation, container safe holding system, faster speeds or higher torque configurations. Industrial Mixers and Controls has been proudly serving the coatings, chemicals, inks, adhesives, pharmaceuticals, foods and cosmetics industries since 1968. Please contact our Sales Engineer Team if you have any questions (973-278-8776)

Specifications

IMC Part

4623100-3000

IMC Model

IMC-B-1VA

Track Inventory

Yes

HP

1

Speed Controller

Yes

Motor Type

TEFC

Impeller Type

HSF

Impeller Diameter

2"

Impeller Attachment

Bolt On

Impeller Material

304 SS

Number of Impeller

1

Lift Type

Air

Enclosure Type

IP55

Phase

3

Air Lift Specs

100PSI

Blade Attach Bolt

3/8-16

Lift Height

24"

Rated Current

2.94 A

Max Vessel Height

25"

Mount

Post

RPM

500-5000

Shaft Diameter

1"

Shaft Attachement

Integrated

Shaft Length (in)

32"

Shaft Material

316 SS

Throat Depth

12.5"

Lowered Height

37.7"

Max Height

61.7"

Voltage

115 V
