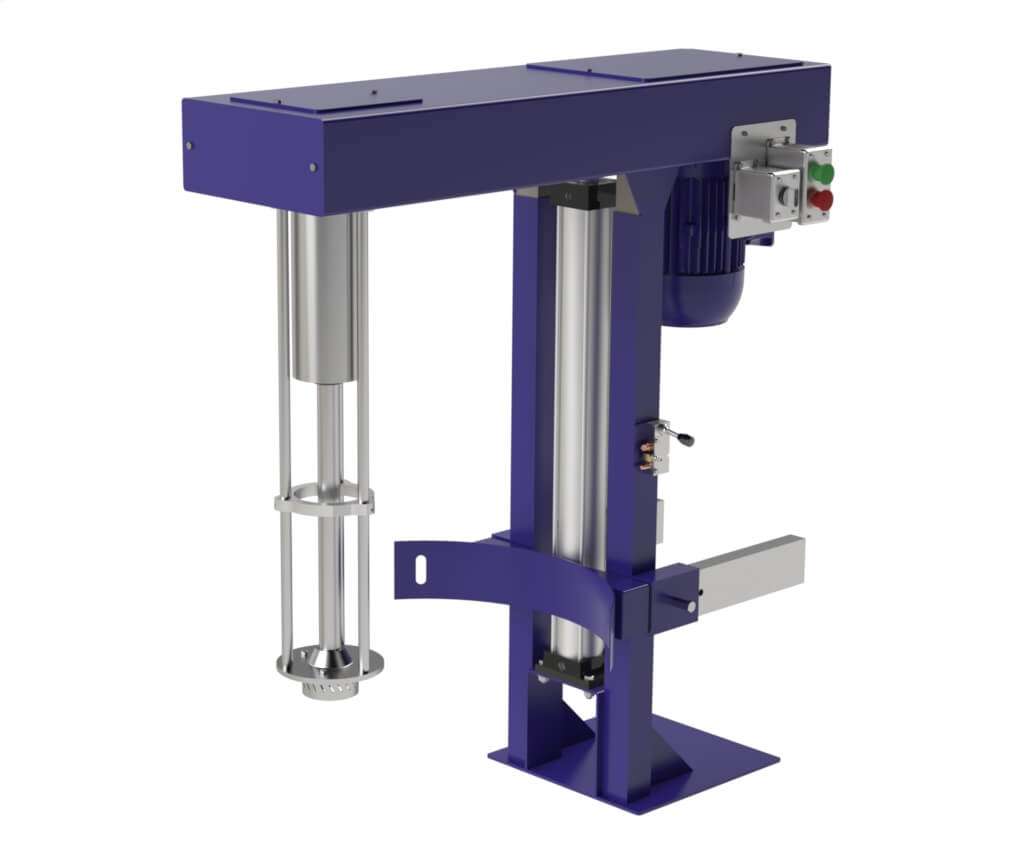

5 HP XP Air Lift Post Mount Rotor Stator, 55 Gal.

$19,379.00

Lead Time: 4-6 Weeks

Description

MC-C-RS post mount rotor stator is the best value for effective high shear mixing in 55-gallon drums. The IMC-C-RS rotor stator provides the power you need to get the job done, whether you’re mixing paints, cosmetics, or simply require more shear to produce the perfect result. The IMC-C-RS can easily reach your process goals and is available in 5HP or 10HP with either standard electric motors or explosion proof electric motors. IMC-C-RS can handle a 40″ diameter vessel with a 36″ lift. The air lift uses a 3-way air valve to gently move in and out of position, allowing the rotor stator to be put anywhere inside the mixing container. This feature is useful if you’ll be mixing items with different viscosities. For further versatility, IMC-C-RS comes standard with an angle slotted stator that can be quickly and simply replaced with a general purpose or Emulser stator. IMC-C-RS’s speed may be readily regulated using a VFD with a digital readout to assure optimal mixing velocities ranging from 0 to 3600 RPM. If the standard configurations of the IMC-C-RS does not suit your needs exactly, contact us for a quote!

Specifications

IMC Part

4624501-8000

IMC Model

IMC-C-RS-5-XP

Track Inventory

Yes

HP

5

Speed Controller

Yes

Motor Type

XP-TEFC

Impeller Type

Angled Slot Rotor Stator

Impeller Diameter

3.5"

Impeller Material

316 SS

Number of Impeller

1

Lift Type

Air

Enclosure Type

IP55

Phase

3

Air Lift Specs

80PSI@1CFM

Lift Height

36"

Rated Current

7.6 A

Max Vessel Height

40"

Mount

Post

RPM

360-3600

Shaft Diameter

1.25"

Shaft Length (in)

36"

Shaft Material

316 SS

Lowered Height

53"

Max Height

89"

Voltage

460V
