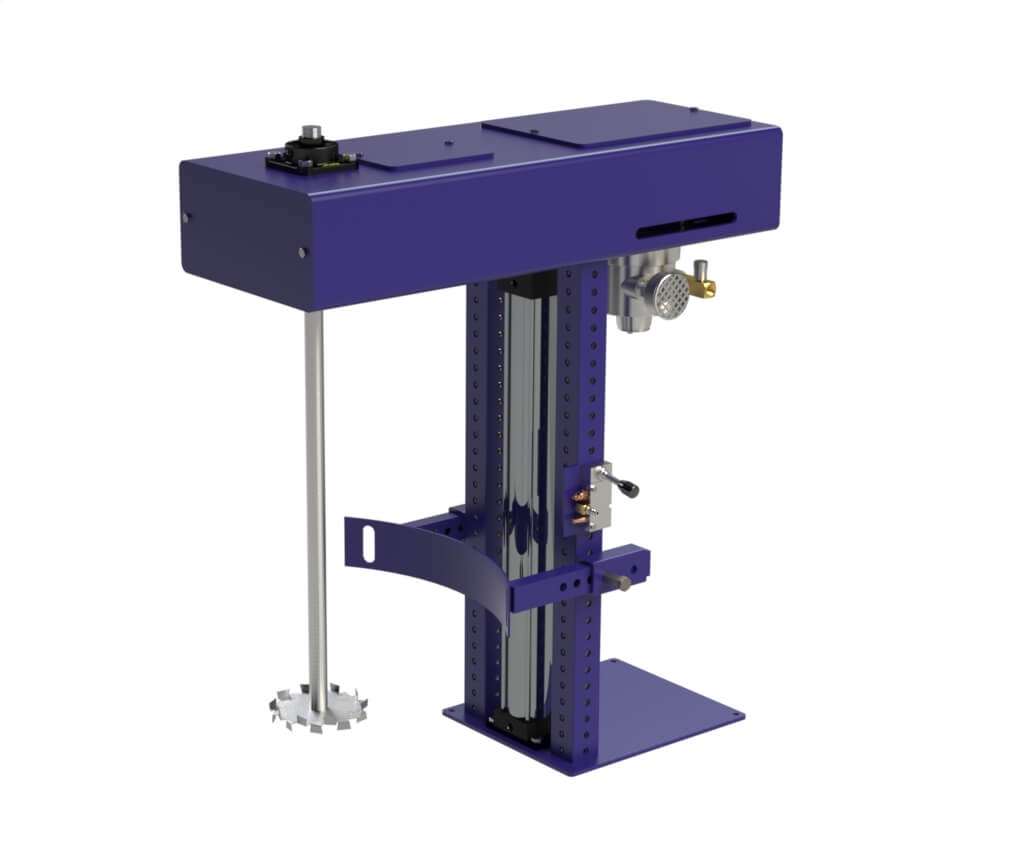

1.5HP IMC-B Air Motor High Speed Disperser, Supports Up To 20 GAL Containers, Air Lift

$6,117.00

Lead Time: 4-6 Weeks

Description

The new IMC-B line of pilot mount disperser is the most reliable in the industry for containers between 5-20 gallons. Look no further! The new IMC-B models have been developed for this specific volume. Our customers enjoy the fact that they now have a cost-effective option between a Lab unit and a large floor mount disperser. The new IMC-B line offers a 24” lift to allow operators to move the high shear dispersion blade in and out of the mix. Additionally, the bolt on blade attachment allows operators to change between blades easily and rapidly. All electric motor models include a variable speed controller (VFD) and can be optioned to an explosion proof variation. Standard units in the IMC-B line of dispersers operate between 0 and 5000 rpm. Air motor models will include a speed control valve, and muffler. The air lift system utilizes a 3-way air valve that allows to move the dispersion blade to any position. The speed is controlled by a keypad that includes an RPM read out to maximize efficiency. Options available are, Keypad extension for remote installation, container safe holding system, faster speeds, or higher torque configurations. Industrial Mixers and Controls has been proudly serving the coatings, chemicals, inks, adhesives, pharmaceuticals, foods, and cosmetics industries since 1968. Please contact our Sales Engineer Team if you have any questions (973-278-8776)



Specifications

IMC Part

4623150-7000

IMC Model

IMC-B-15AA

Track Inventory

Yes

HP

1.5

Speed Controller

Yes

Motor Type

Air

Air Motor Spec

72CFM @ 100PSI

Impeller Type

HSF

Impeller Diameter

3"

Impeller Attachment

Bolt On

Impeller Material

304 SS

Number of Impeller

1

Lift Type

Air

Air Lift Specs

100PSI

Blade Attach Bolt

3/8-16

Lift Height

24"

Max Vessel Height

25"

Mount

Post

RPM

450-4500

Shaft Diameter

1"

Shaft Attachement

Integrated

Shaft Length (in)

32"

Shaft Material

316 SS

Throat Depth

12.5"

Lowered Height

37.7"

Max Height

61.7"
