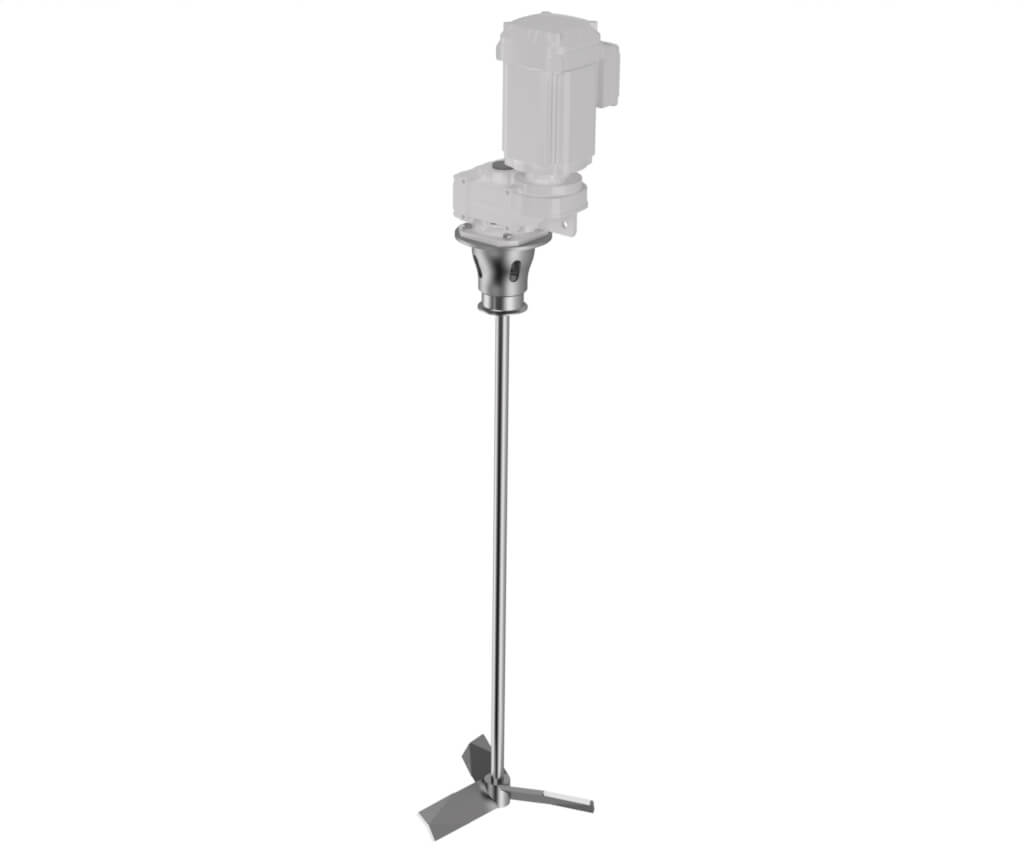

3″ Tri-Clamp® Mount, 1.5 HP Electric Gear Drive White Washdown Mixer

$5,114.00

Lead Time: 3-4 Weeks
IMC Part: 4893864-8000 Categories: , ,

Description

IMC’s Stainless Steel Washdown Tri-Clamp® Industrial Mount Mixers were designed and constructed to allow for full wash down of the equipment. Engineered for portability and versatility under extreme conditions. This Mixer will attach to a 3″ Tri-Clamp® sealed mount fitting. The Tri-clamp® design allows for a quick and easy access to the vessel without the need for tools. Supplied with a Stainless Steel Hydrofoil impeller, a 5:1 ratio gear reducer and a high-performance seal, ensuring a sealed environment at a great price. Our Engineering team can customize different options, from impellers to longer shafts or gear box with different gear ratios. At IMC we can customize the Tri-Clamp® mount mixers to meet your requirements, electropolished wetted parts, mechanical seals, material certifications and certificate of conformance can all be provided. Industrial Mixers and Controls has been proudly serving the coatings, chemicals, inks, adhesives, pharmaceuticals, foods, and cosmetics industries since 1968. Please contact our Sales Engineering Team if you have any questions (973-278-8776)

Specifications

IMC Part

4893864-8000

IMC Model

IMC-1.5C-AGD-W

Track Inventory

Yes

HP

1.5

Speed Controller

No

Motor Type

TEFC

Impeller Type

VHE

Impeller Diameter

15"

Impeller Attachment

Set Screw

Impeller Material

304 SS

Number of Impeller

1

Enclosure Type

IP65

Phase

3

Rated Current

5.2/2.6 A

Mount

Tri-Clamp

Mount Dimmension

3 in

RPM

331

Shaft Diameter

1"

Shaft Attachement

Coupler

Shaft Length (in)

44"

Shaft Material

316 SS

Voltage

230/460 V

Gearbox

Yes

Gear Ratio

5.17:1

Gear Type

Helical

Gearbox Enclosure

Painted Steel

External Material

Painted Steel

Wetted Material

316 SS
