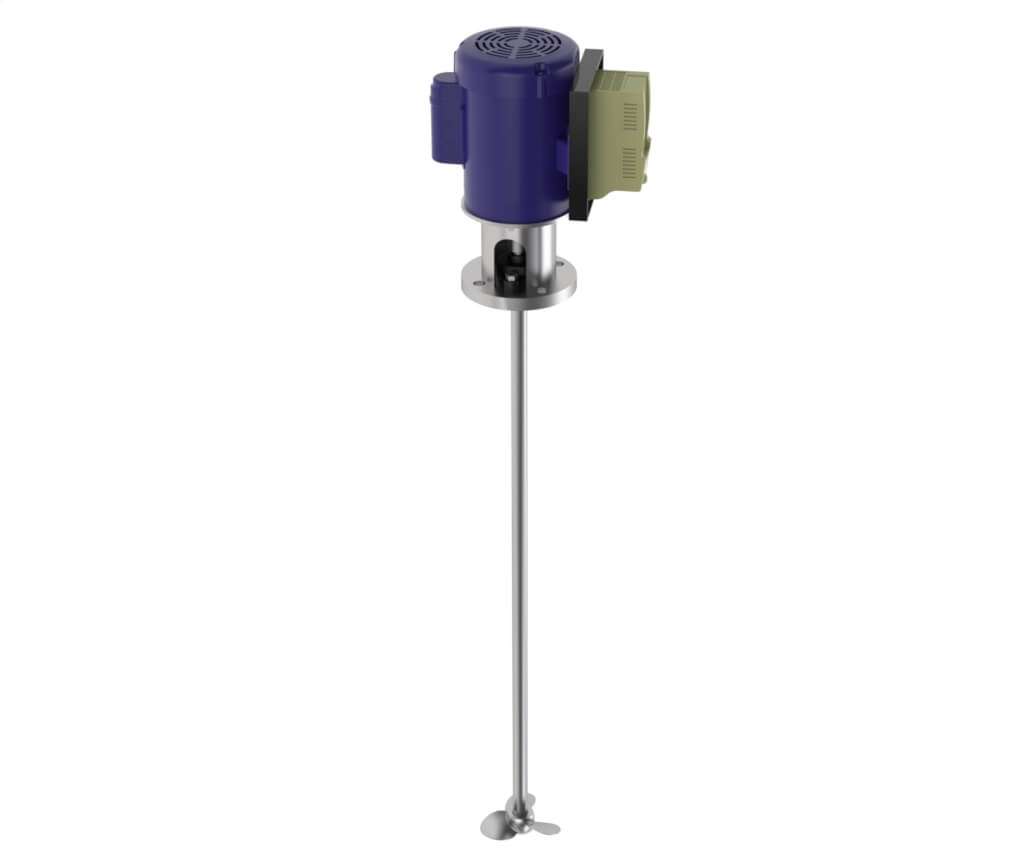

1/3 HP Variable Speed Direct Drive Flange Mount Mixer

$3,177.00

Lead Time: 6-8 Weeks
IMC Part: 1033568-2000 Categories: , ,

Description

IMC’s Flange Mount Mixer are generally mounted to the top of a tank with a 2.5”-150# ANSI flange. IMC Process Engineers designed these Flange Mount Mixers for heavy duty applications. A high-performance bearing was added for support in an all-welded construction assembly. Gear reducer models operate at lower rpms and provide more torque. Our top entry mixers can be equipped with a Totally Enclosed Fan Cooled (TEFC) electric motor. The air motor package includes a muffler and a needle control valve. The speed is controlled by a keypad that includes an RPM read out to maximize efficiency and repeatability of the process. Simply the best value for this type of mixer. This mixer can be customized with multiple gear ratios, seal packages, plate sizes, impellers, and shaft lengths for your application. Industrial Mixers and Controls has been proudly serving the coatings, chemicals, inks, adhesives, pharmaceuticals, foods, and cosmetics industries since 1968. Please contact our Sales Engineering Team if you have any questions (973-278-8776)

Specifications

IMC Part

1033568-2000

IMC Model

IMC-1/3F-ED-VS

Track Inventory

Yes

HP

0.33

Speed Controller

Yes

Motor Type

TEFC

Impeller Type

Propeller

Impeller Diameter

4"

Impeller Attachment

Set Screw

Impeller Material

316 SS

Number of Impeller

1

Enclosure Type

IP55

Phase

3

Mount

Flange

Mount Dimmension

2.5"-ANSI 150# Flange

RPM

180-1800

Shaft Diameter

1"

Shaft Attachement

Coupling

Shaft Length (in)

44"

Shaft Material

316 SS

Voltage

120/240 V

Gearbox

No
