1.5 HP Variable Speed Bracket Mount Tote Mixer
$3,510.00
Description

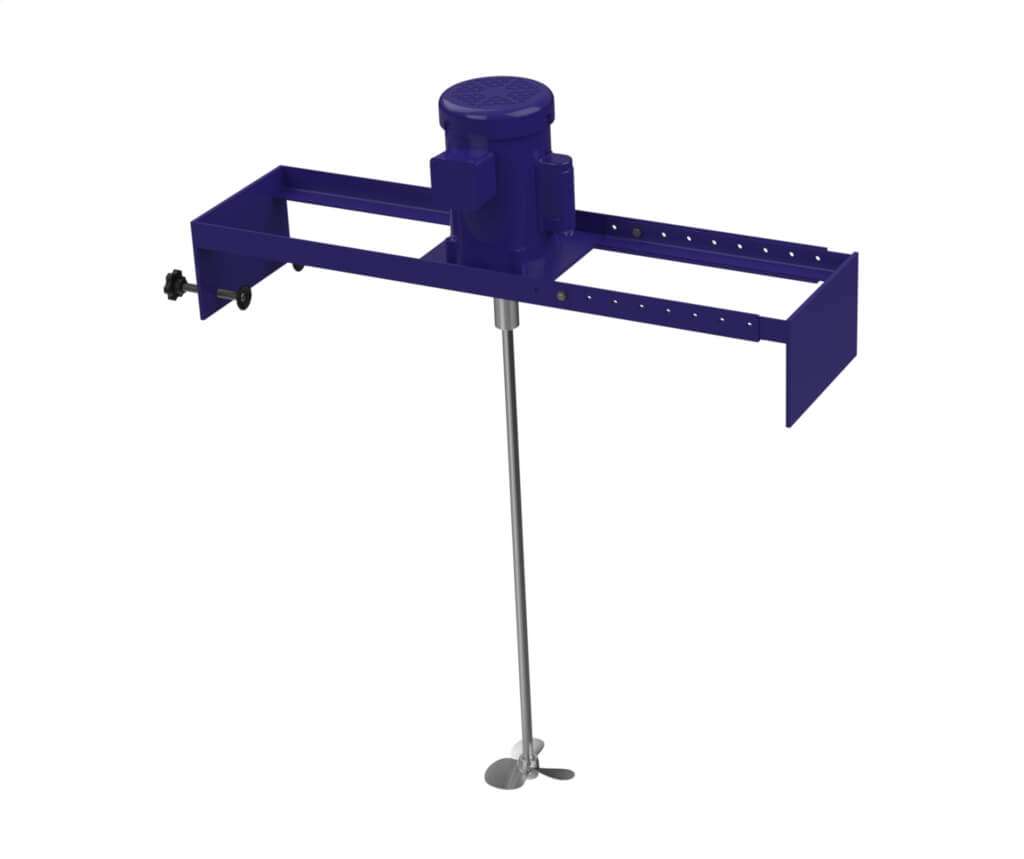

IMC BMD direct drive bracket mount tote mixers are ideal for low to medium viscosity materials like emulsions solvents and aqueous solutions. The expandable mounting bracket will fit totes that are 34″ to 48″ wide totes. The bracket mount design makes it easy to move mixers between totes. TEFC models include a cord, plug and switch. Explosion proof models must be wired by customers. Variable speed models have a speed controller that is prewired and mounted to the mixer. Shaft and 3 blade propellers are included. Other options are available, contact us for a quote!
Specifications
| IMC Part |
4011501-4000 |
|---|---|
| IMC Model |
IMC-BMD-01-15-V |
| Track Inventory |
Yes |
| HP |
1.5 |
| Speed Controller |
Yes |
| Motor Type |
TEFC |
| Frame |
56C |
| Impeller Type |
Propeller |
| Impeller Diameter |
6" |
| Impeller Attachment |
Set Screw |
| Impeller Material |
316 SS |
| Number of Impeller |
1 |
| Phase |
1 |
| Mount |
Bracket Mount |
| Mount Dimmension |
34" up to 48" |
| RPM |
35-1750 |
| Shaft Diameter |
0.75" |
| Shaft Length (in) |
36" |
| Shaft Material |
316 SS |
| Voltage |
230 V |
| Drive |
Direct |
| Gearbox |
No |
