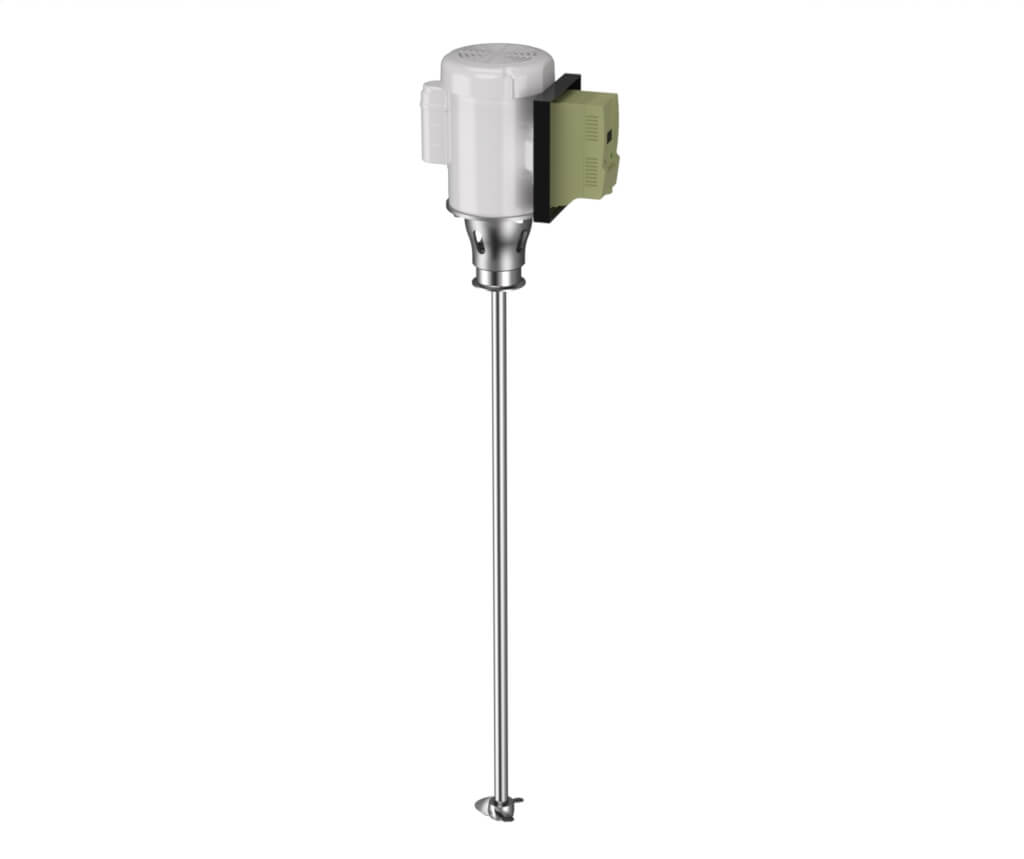

3″ Tri-Clamp® Mount, 1 HP Variable Speed Electric Direct Drive White Washdown Mixer

$4,332.00

Lead Time: 3-4 Weeks
IMC Part: 4893757-9000 Categories: , ,

Description

IMC’s Stainless Steel Washdown Tri-Clamp® Industrial Mount Mixers were designed and constructed to allow for full wash down of the equipment. Engineered for portability and versatility under extreme conditions. This Mixer will attach to a 3″ Tri-Clamp® sealed mount fitting. The Tri-clamp® design allows for a quick and easy access to the vessel without the need for tools. Supplied with a NEMA 4X Washdown Variable Speed Drive, Stainless Steel propellers and a high-performance seal, ensuring a sealed environment at a great price. Our Engineering team can customize different options, from impellers to longer shafts or gear box with different gear ratios. At IMC we can customize the Tri-Clamp® mount mixers to meet your requirements, electropolished wetted parts, mechanical seals, material certifications and certificate of conformance can all be provided. Industrial Mixers and Controls has been proudly serving the coatings, chemicals, inks, adhesives, pharmaceuticals, foods, and cosmetics industries since 1968. Please contact our Sales Engineering Team if you have any questions (973-278-8776)

Specifications

IMC Part

4893757-9000

IMC Model

IMC-1C-ED-VS-W

Track Inventory

Yes

HP

1

Speed Controller

Yes

Motor Type

TEFC

Impeller Type

Propeller

Impeller Diameter

5.5"

Impeller Attachment

Set Screw

Impeller Material

316 SS

Number of Impeller

1

Enclosure Type

IP65

Phase

1

Rated Current

3.6 A

Mount

Tri-Clamp

Mount Dimmension

3 in

RPM

175-1750

Shaft Diameter

.625"

Shaft Attachement

Coupler

Shaft Length (in)

32"

Shaft Material

316 SS

Voltage

120V/230V

Gearbox

No

External Material

Painted Steel

Wetted Material

316 SS
