1.5 HP Variable Speed Toggle Clamp Tote Mixer

$4,688.00

IMC Part: 4021501-6000 Categories: , ,

Description

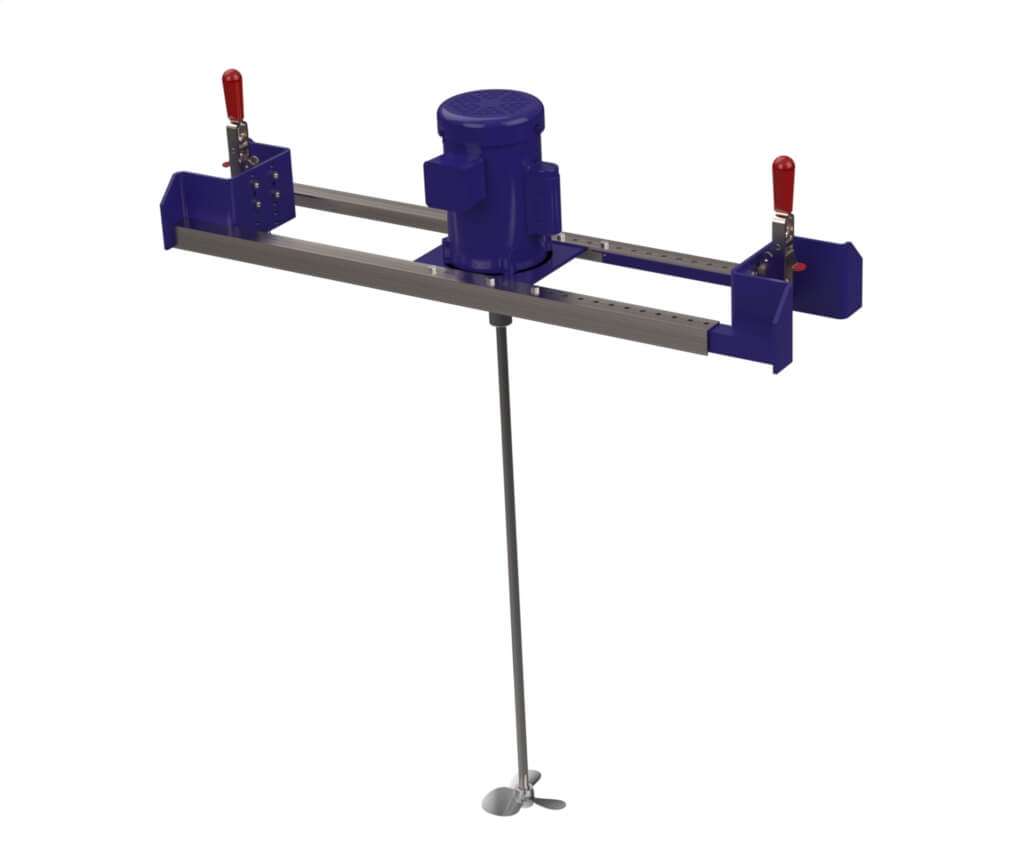

IMC BMD Toggle Clamp Mixers are designed for mixing light to medium viscosity material. These units come complete with a shaft and 3-blade propellers. The expandable mounting bracket is designed to fit on 34″ to 48″ wide totes. The premium toggle clamps included clamp on directly to your tote cage and can adjust to various style tote cages, reducing the installation and turnover time in you mixing processes. Cord, plug, and switch are included with TEFC models. Explosion proof models must be wired by the customer. Variable speed electric models come with a prewired speed controller. Other options are available, contact us for a quote!

Specifications

IMC Part

4021501-6000

IMC Model

IMC-BMD-02-15-V

Track Inventory

Yes

HP

1.5

Speed Controller

Yes

Motor Type

TEFC

Frame

56C

Impeller Type

Propeller

Impeller Diameter

6"

Impeller Attachment

Set Screw

Impeller Material

316 SS

Number of Impeller

1

Phase

1

Mount

Toggle Clamp

Mount Dimmension

34"- 48"

RPM

35-1750

Shaft Diameter

0.75"

Shaft Length (in)

36"

Shaft Material

316 SS

Voltage

230 V

Drive

Direct

Gearbox

No
