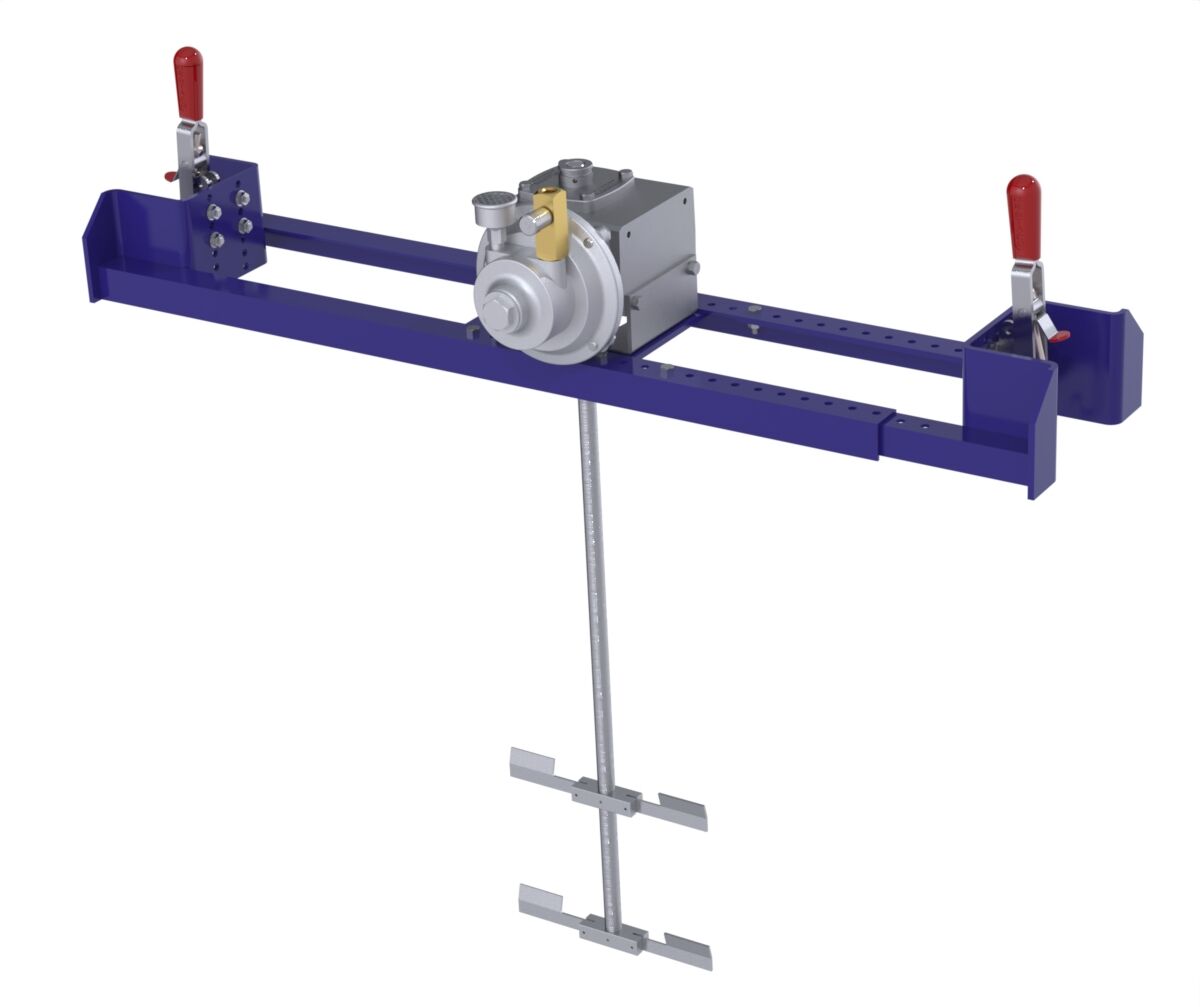

1.5 HP Air Motor Geared Toggle Clamp Tote Mixer
$4,212.50
Description
IMC BMG Gear Drive Toggle Clamp Mixers are designed for mixing light to medium viscosity material. These units come complete with a shaft and 3-blade propellers. The expandable mounting bracket is designed to fit on 34″ to 48″ wide totes. The premium toggle clamps included clamp on directly to your tote cage and can adjust to various style tote cages, reducing the installation and turnover time in you mixing processes. Cord, plug, and switch are included with TEFC models. Explosion proof models must be wired by the customer. Variable speed electric models come with a prewired speed controller. Other options are available, contact us for a quote!
Specifications
| IMC Part |
6021503-7000 |
|---|---|
| IMC Model |
IMC-BMG-02-15-A |
| Track Inventory |
Yes |
| HP |
1.5 |
| Speed Controller |
Yes |
| Motor Type |
Air |
| Air Motor Spec |
100 PSI @ 70 CFM |
| Frame |
56C |
| Impeller Type |
BBO |
| Impeller Diameter |
12" |
| Impeller Attachment |
Set Screw |
| Impeller Material |
304 SS |
| Number of Impeller |
2 |
| Mount |
Toggle Clamp |
| Mount Dimmension |
34"- 48" |
| RPM |
40-400 |
| Shaft Diameter |
0.75" |
| Shaft Length (in) |
36" |
| Shaft Material |
316 SS |
| Drive |
Gear |
| Gearbox |
Yes |
| Gear Ratio |
7.5:1 |
| Gearbox Frame |
Right Angle |
