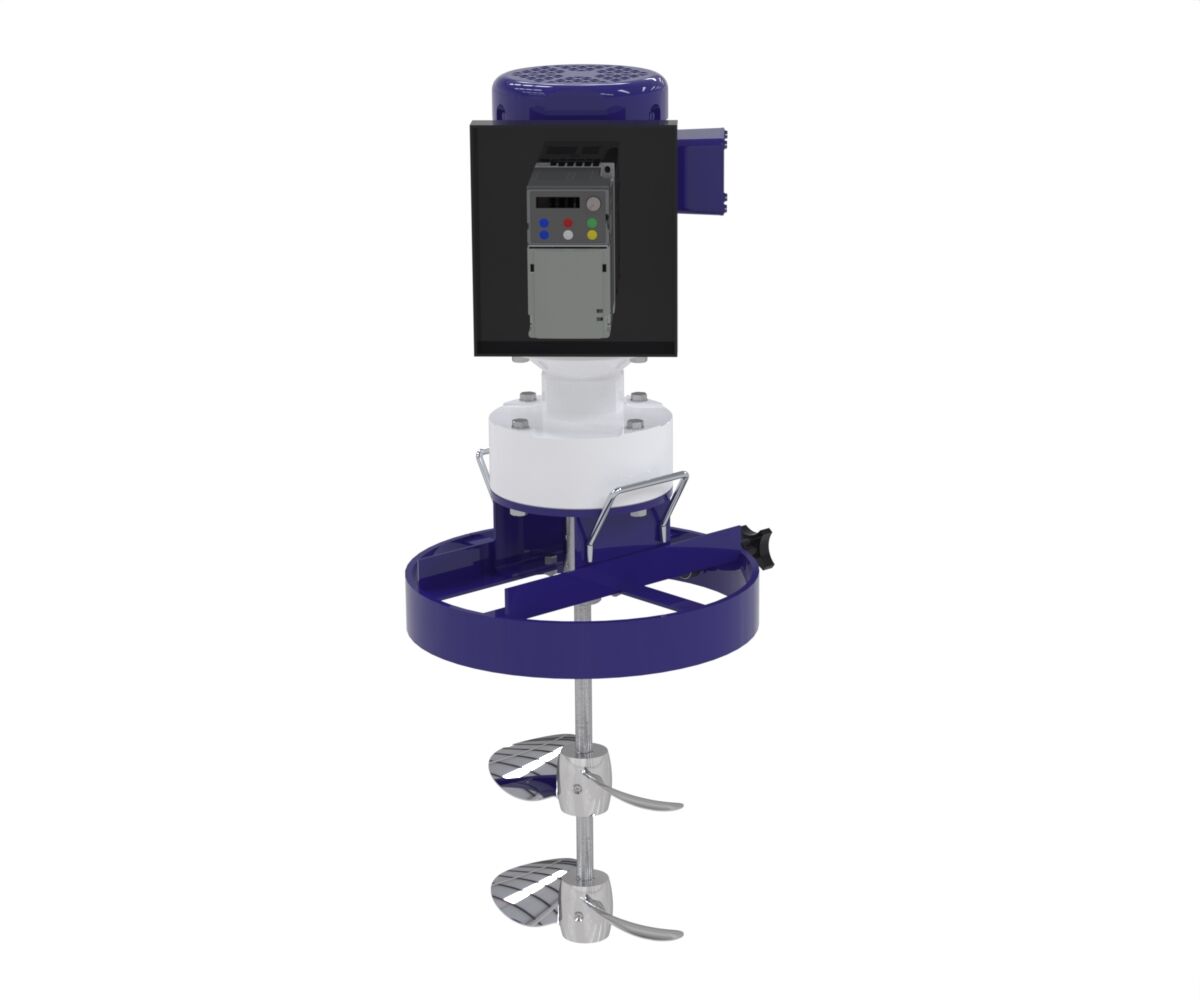

1/2 HP Variable Speed Heavy Duty Ring Mount Pail Mixer

$3,119.50

IMC Part: 6220501-4000 Categories: , ,

Description

IMC’s HDPM model is the heavy-duty pail mixer you need! This model is ideal for low-speed mixing and is designed to work with 5-gallon pails with an outer diameter up to 12-1/4”. Every model includes a 5/8”x15” shaft and 9” two blade propellers. Air motor models will include a speed control valve, and muffler. Electric motor models include a cord, plug and switch. Other options are available, contact us for a quote!

Specifications

IMC Part

6220501-4000

IMC Model

IMC-HDPM-02-12-V

Track Inventory

Yes

HP

0.5

Speed Controller

Yes

Motor Type

TEFC

Frame

56C

Impeller Type

2 Blade Propeller

Impeller Diameter

9"

Impeller Attachment

Set Screw

Impeller Material

319-Al

Number of Impeller

2

Phase

1

Mount

Heavy Duty Ring Mount

Mount Dimmension

Up to 12.25" Diam.

RPM

0-350

Shaft Diameter

.625"

Shaft Length (in)

15"

Shaft Material

316 SS

Voltage

115 V

Drive

Gear

Gearbox

Yes

Gear Ratio

5:1

Gearbox Frame

Straight
