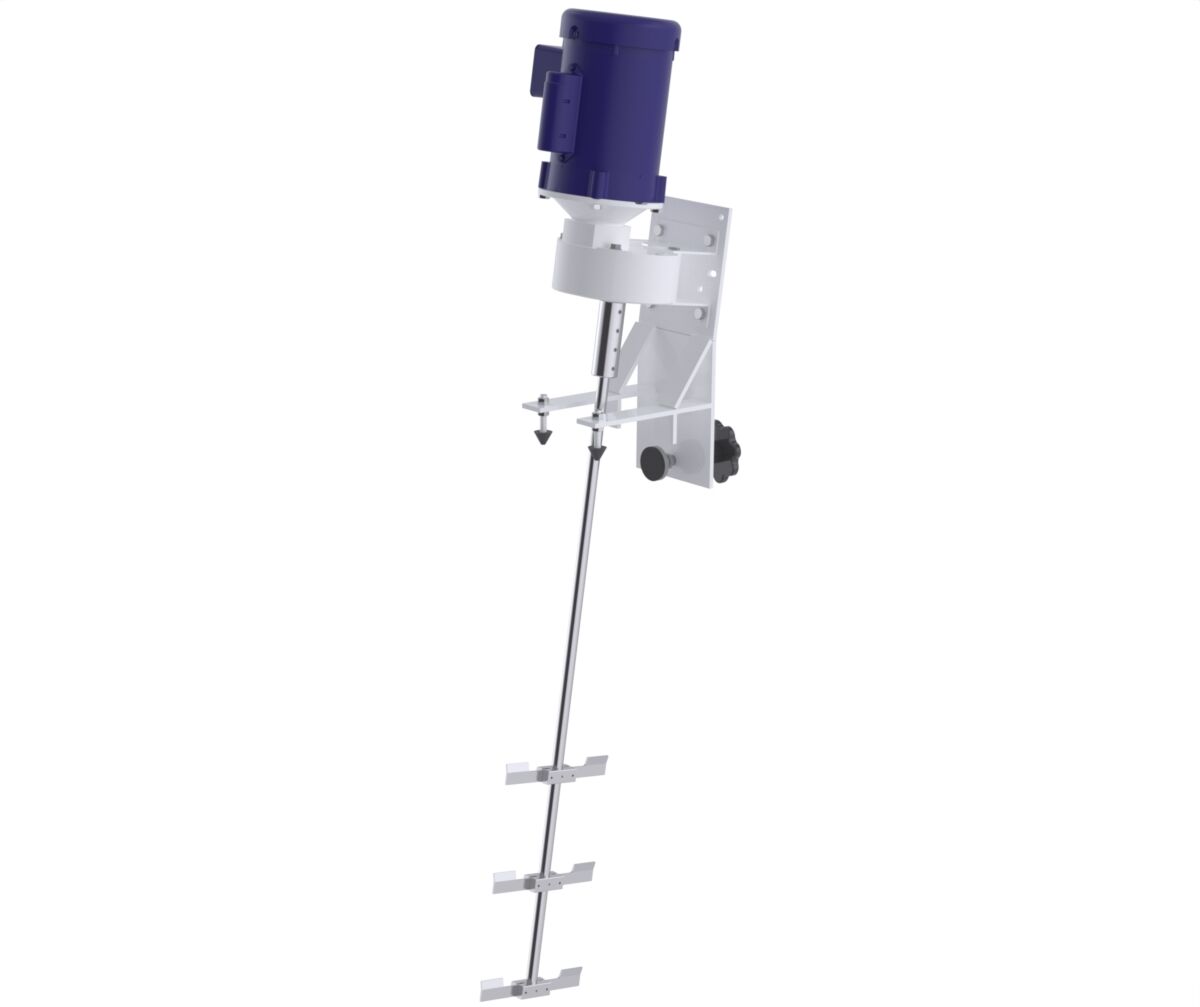

1/2 HP Gear Drive Clamp Mount Drum Mixer

$3,666.00

Lead Time: 3-4 Weeks
IMC Part: 6120504-5000 Categories: , ,

Description

IMC CMBG gear drive clamp mount drum mixers are ideal for mixing high viscosity materials like heavy paints, resin, and polymers. This model will also help re-suspend any material that may have settled at the bottom of your drum. The clamp design on this model allows it to clamp on to the rim of your drum and have the shaft be inserted into either a closed or open drum. All models come with IMC’s BBO folding blade. TEFC Models include a plug, cord, and switch. Variable speed models include a prewired speed controller and is mounted on the motor. Explosion proof models have motor leads only. Other options are available, contact us for a quote!

Specifications

IMC Part

6120504-5000

IMC Model

IMC-CMBG-02-12-TEFC

Track Inventory

Yes

HP

0.5

Speed Controller

No

Motor Type

TEFC

Frame

56C

Impeller Type

BBO

Impeller Diameter

7"

Impeller Attachment

Set Screw

Impeller Material

304 SS

Number of Impeller

3

Phase

1

Mount

Clamp Mount

Mount Dimmension

Adjustable

RPM

350

Shaft Diameter

.625"

Shaft Length (in)

36"

Shaft Material

316 SS

Voltage

115/230 V

Drive

Gear

Gearbox

Yes

Gear Ratio

5:1

Gearbox Frame

Parallel
