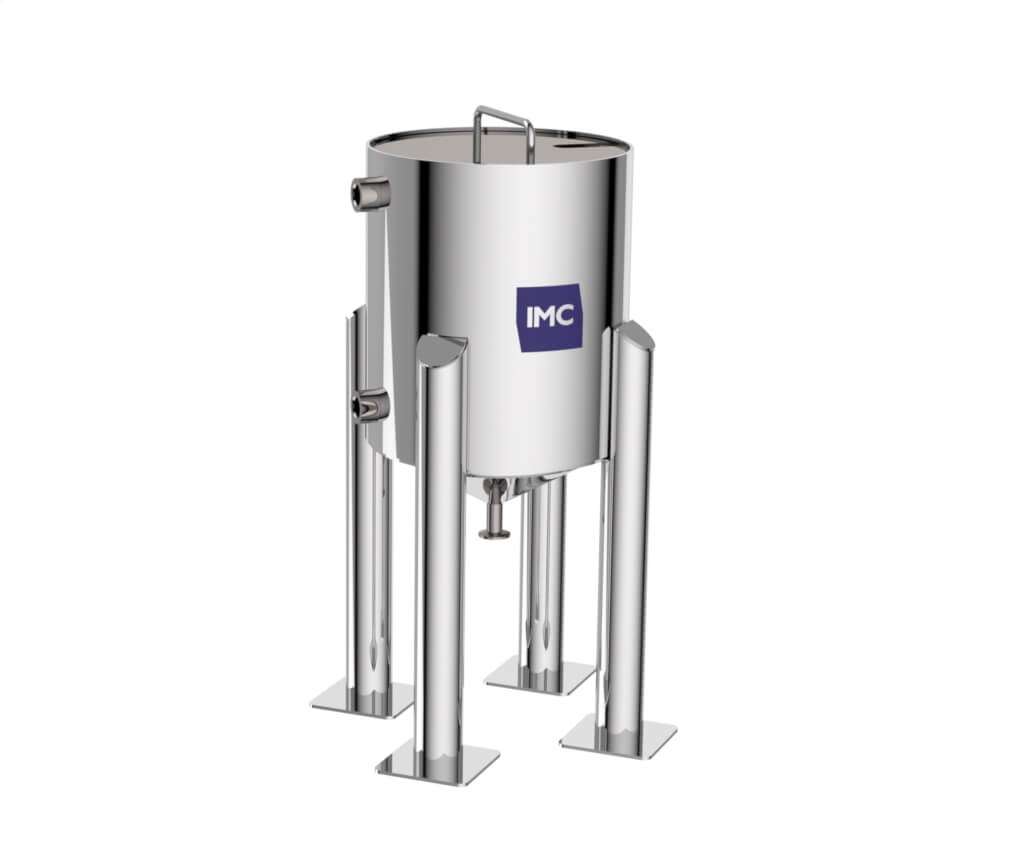

5 Gallon Sanitary Cone Bottom Jacketted Kettle
Description
Specifications
| IMC Part |
3541356-4012 |
|---|---|
| IMC Model |
KCC-CB-75J-5-SS-Sanitary |
| Track Inventory |
Yes |
| Wetted Material |
304 SS |
| Bottom Head |
Cone |
| Bottom Drain |
3/4" Flush Valve Ferrule |
| Bottom Clearance |
24" |
| Straight Side Height |
12" |
| Working Capacity |
5 Gal |
| Jacket |
75 psig |
| Floor Pads |
3"x3" |
| Legs |
1.5" Tube |
| Bottom Cone |
30 Degrees Cone, 3 inch deep |
| # of Legs |
4 |
| Finish Outside |
150 grit |
| Finish Inside |
Sanitary, 240 grit |
| Inner Shell Diameter |
12 inch |
| Cover |
Split Cover, 13" Diameter |
| Jacket Fittings |
3/8" FNPT, inlet/outlet |
| Max Capacity |
7 Gal |
| Pocket Jacket Diameter |
13.5" OD |
| Cover Center Hole |
Optional |
| Cover Handles |
1 Handle, 1/4" |
| Top Recess for Cover |
1/4" |
