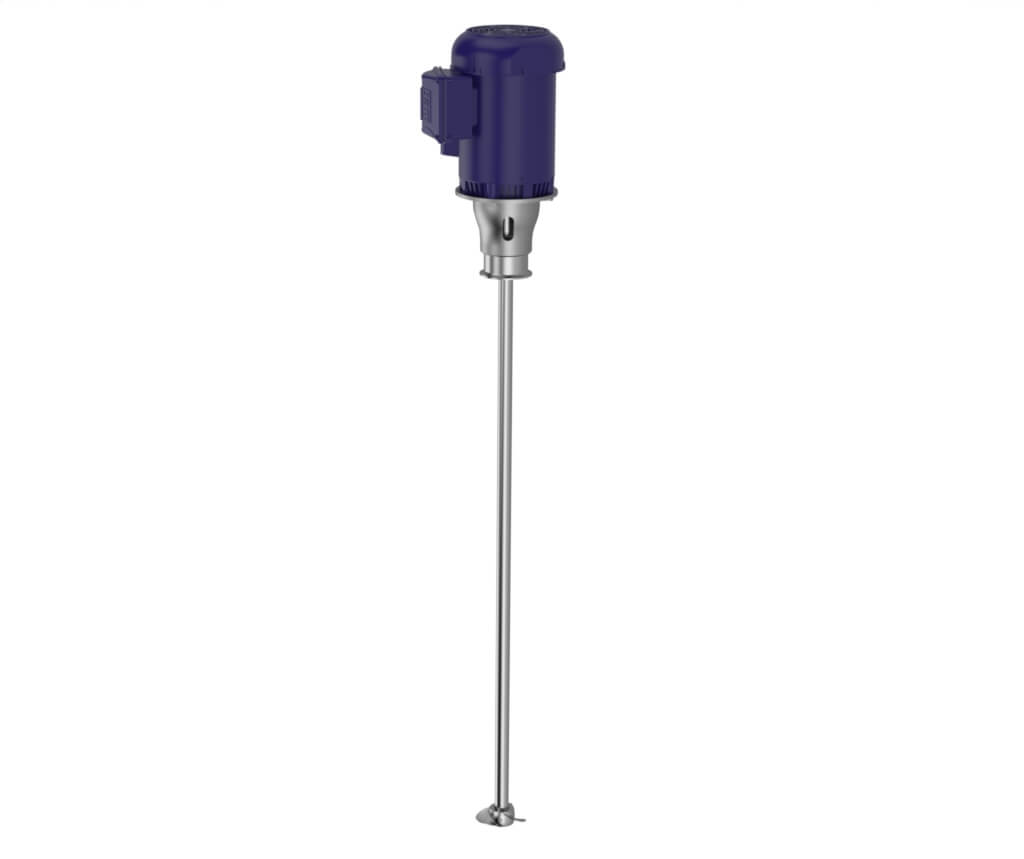

3″ Tri-Clamp® Mount, 1.5 HP Electric Direct Drive Mixer
$2,199.00 – $2,271.00
Lead Time: 3-4 Weeks
Description
Engineered for portability and versatility under extreme conditions. This Mixer will attach to a 3″ Tri-Clamp® sealed mount fitting. The Tri-clamp® design allows for a quick and easy access to the vessel without the need for tools. IMC’s Tri-Clamp® Mount Mixers are Supplied with Stainless Steel propellers and a high-performance seal, ensuring a sealed environment at a great price. Our Engineering team can customize different options, from impellers to longer shafts or gear box with different gear ratios. At IMC we can customize the Tri-Clamp® mount mixers to meet your requirements, electropolished wetted parts, mechanical seals, material certifications and certificate of conformance can all be provided. Industrial Mixers and Controls has been proudly serving the coatings, chemicals, inks, adhesives, pharmaceuticals, foods, and cosmetics industries since 1968. Please contact our Sales Engineering Team if you have any questions (973-278-8776)
Specifications
| IMC Part | 4893852-4000 |
|---|---|
| IMC Model | IMC-1.5C-ED |
| Track Inventory | Yes |
| HP | 1.5 |
| Speed Controller | No |
| Motor Type | TEFC |
| Impeller Type | Propeller |
| Impeller Diameter | 6" |
| Impeller Attachment | Set Screw |
| Impeller Material | 316 SS |
| Number of Impeller | 1 |
| Enclosure Type | IP55 |
| Phase | 3 |
| Rated Current | 5.2/2.6 A |
| Mount | Tri-Clamp |
| Mount Dimmension | 3 in |
| RPM | 1750 |
| Shaft Diameter | .625" |
| Shaft Attachement | Coupler |
| Shaft Length (in) | 24", 28", 32", 36", 48", 52", 56", 60" |
| Shaft Material | 316 SS |
| Voltage | 230/460 V |
| Gearbox | No |
| External Material | Painted Steel |
| Wetted Material | 316 SS |
