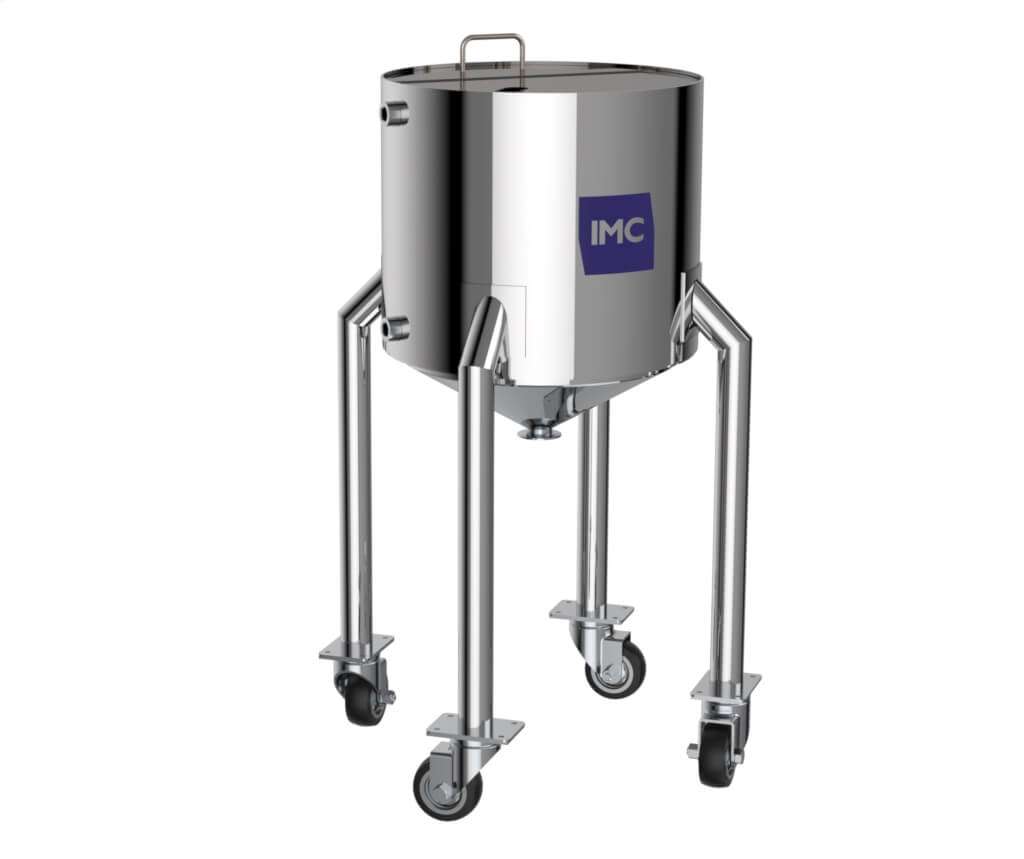

10 Gallon Sanitary Cone Bottom Jacketted Kettle
Description
Specifications
| IMC Part |
3541355-4008 |
|---|---|
| IMC Model |
KO4W-75J-10-SS316 |
| Track Inventory |
Yes |
| External Material |
304 SS |
| Wetted Material |
316 SS |
| Bottom Head |
Cone |
| Bottom Drain |
1-1/2" flush ball valve |
| Bottom Clearance |
12" |
| Straight Side Height |
16" |
| Working Capacity |
10 Gal |
| Legs |
1-1/2" tube |
| Bottom Cone |
1-1/2 inch, 15 degrees |
| # of Legs |
4 |
| Finish Outside |
120 grit |
| Finish Inside |
Sanitary, 150 grit |
| Inner Shell Diameter |
14 inch |
| Outer Shell Diameter |
16 inch |
| Cover |
Hinged w. shaft entry slot |
| Jacket Fittings |
3/8" FNPT, inlet/outlet |
| Max Capacity |
13 Gal |
