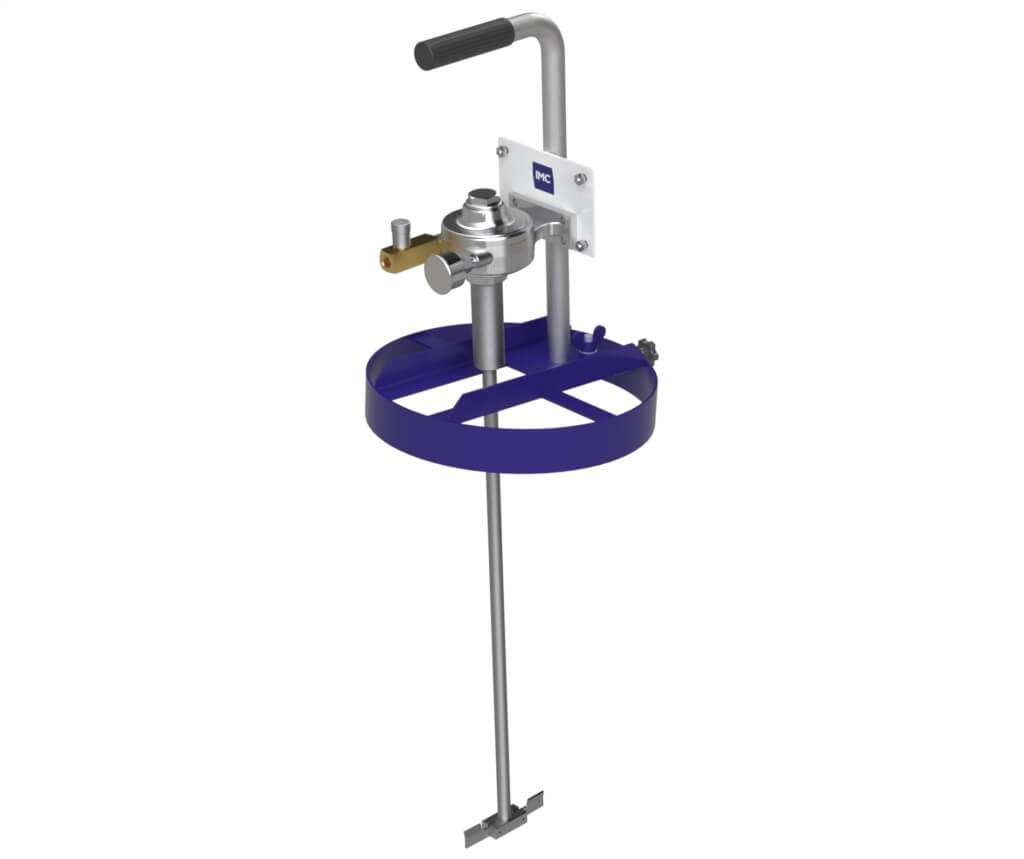

1.5 HP Air Motor Ring Mount Pail Mixer
$1,910.00
Description
IMC’s RM model is a portable and lightweight pail mixer. This model is ideal for mixing colorants into paint, blending powders into liquids and to re-suspend settled materials. Our ring mount design provides a lower center of gravity to create a steadier mixing process. This mixer works well with open or closed 5-gallon pails with lids up to 12-1/4” outer diameter. For closed pails, the stainless steel BBO impellers will fold to fit into openings up to 1-1/2” diameter. Air motor models will include a speed control valve, and muffler. Electric ODP models include a cord, plug and switch and explosion proof models come with motor leads only. Other options are available, contact us for a quote!
Specifications
| IMC Part | 4211503-3000 |
|---|---|
| IMC Model | IMC-RM-01-15-A |
| Track Inventory | Yes |
| HP | 1.5 |
| Speed Controller | Yes |
| Motor Type | Air |
| Air Motor Spec | 100 PSI @ 70 CFM |
| Impeller Type | BBO |
| Impeller Diameter | 5.5" |
| Impeller Attachment | Set Screw |
| Impeller Material | 304 SS |
| Number of Impeller | 1 |
| Mount | Ring Mount |
| Mount Dimmension | 5 Gallon Bucket |
| RPM | 300-3000 |
| Shaft Diameter | .625" |
| Shaft Length (in) | 12" |
| Shaft Material | 316 SS |
| Drive | Direct |
| Gearbox | No |
