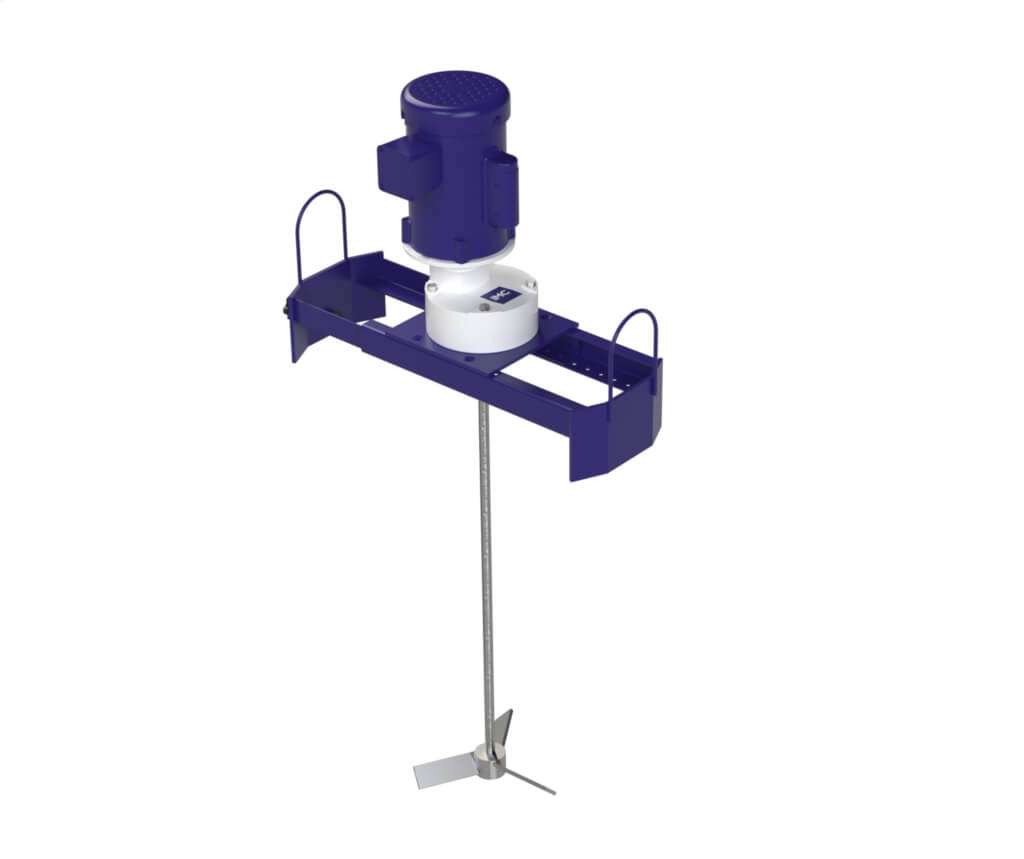

1 HP Variable Speed Bracket Mount Drum Mixers
$4,653.00
Lead Time: 3-4 Weeks
Description
IMC BMB gear drive, bracket mount drum mixers are used best with medium to heavy viscosity materials. This model was designed to be rugged and to fit 30–55-gallon drums (18–31-inch diameter). These units are very portable and include stainless steel shaft and impellers. Variable speed models include a prewired speed controller and is mounted on the motor. Other options are available, contact us for a quote!
Specifications
| IMC Part |
6111001-3000 |
|---|---|
| IMC Model |
IMC-BMB-01-1-V |
| Track Inventory |
Yes |
| HP |
1 |
| Speed Controller |
Yes |
| Motor Type |
TEFC |
| Frame |
56C |
| Impeller Type |
3 Blade Axial |
| Impeller Diameter |
10" |
| Impeller Attachment |
Set Screw |
| Impeller Material |
316 SS |
| Number of Impeller |
1 |
| Phase |
1 |
| Mount |
Bracket Mount |
| Mount Dimmension |
18"-31" Diam. |
| RPM |
0-350 |
| Shaft Diameter |
.625" |
| Shaft Length (in) |
30" |
| Shaft Material |
316 SS |
| Voltage |
115 V |
| Drive |
Gear |
| Gearbox |
Yes |
| Gear Ratio |
5:1 |
| Gearbox Frame |
Straight |
