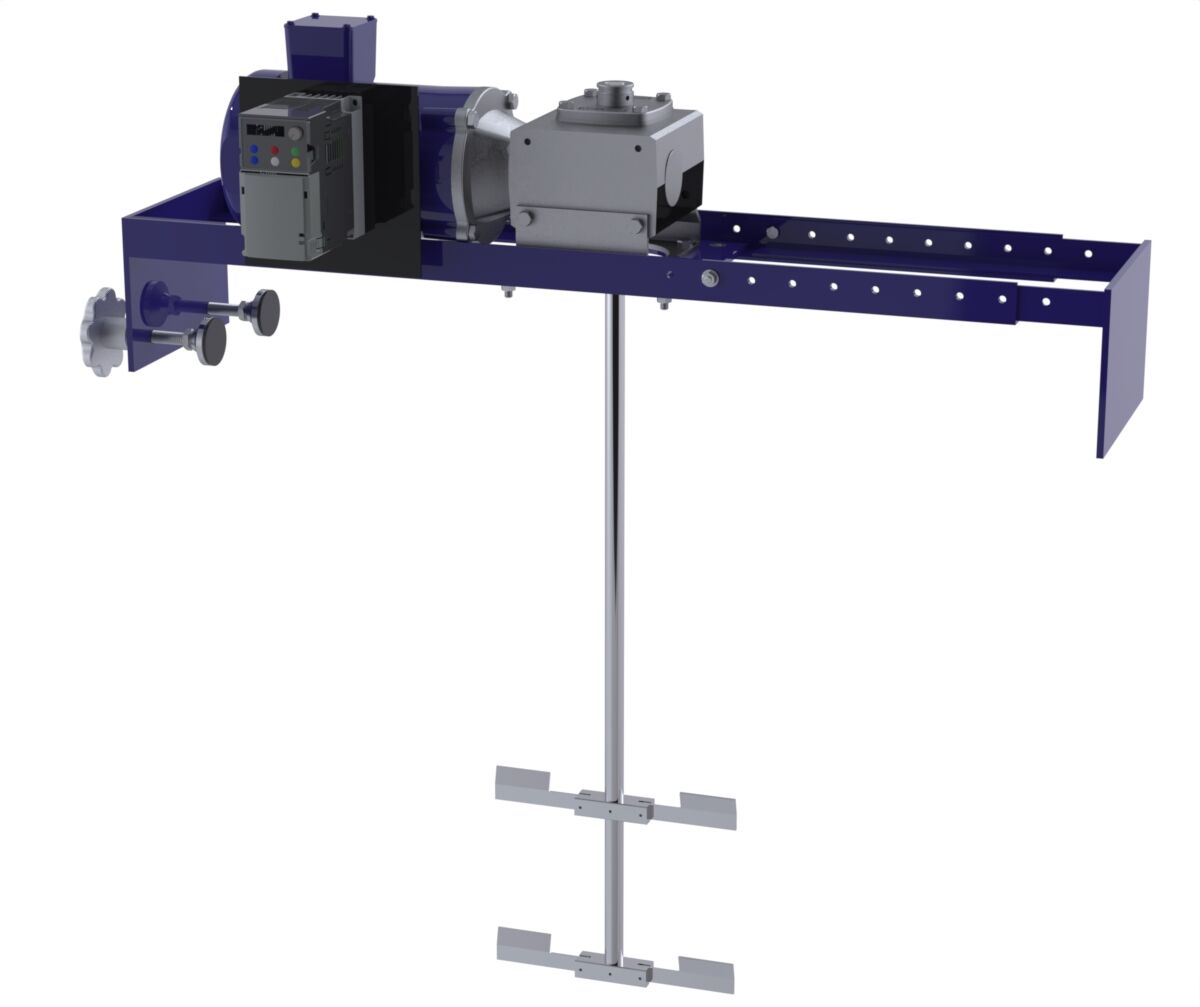

1.5 HP Variable Speed Gear Drive Bracket Mount Tote Mixer

$4,702.00

IMC Part: 6011501-5000 Categories: , ,

Description

IMC BMG gear drive bracket mount tote mixers are ideal for medium to heavy viscosity materials like ink, polymers and coating solutions. This gear driven rendition of the bracket mount mixer produces more torque by running at a lower speed, additionally the 90-degree design of the gearbox helps keep a low profile The expandable mounting bracket will fit totes that are 34″ to 48″ wide totes. The bracket mount design makes it easy to move mixers between totes. TEFC models include a cord, plug and switch. Explosion proof models must be wired by customers. Variable speed models have a speed controller that is prewired and mounted to the mixer. Shaft and 3 blade propellers are included. Other options are available, contact us for a quote!







Specifications

IMC Part

6011501-5000

IMC Model

IMC-BMG-01-15-V

Track Inventory

Yes

HP

1.5

Speed Controller

Yes

Motor Type

TEFC

Frame

56C

Impeller Type

BBO

Impeller Diameter

14"

Impeller Attachment

Set Screw

Impeller Material

304 SS

Number of Impeller

2

Phase

1

Mount

Bracket Mount

Mount Dimmension

34" up to 48"

RPM

0-230

Shaft Diameter

0.75"

Shaft Length (in)

36"

Shaft Material

316 SS

Voltage

230 V

Drive

Gear

Gearbox

Yes

Gear Ratio

7.5:1

Gearbox Frame

Right Angle
