Home » All Products  » 1/2 HP Variable Speed Gear Drive Bung Mount Mixer

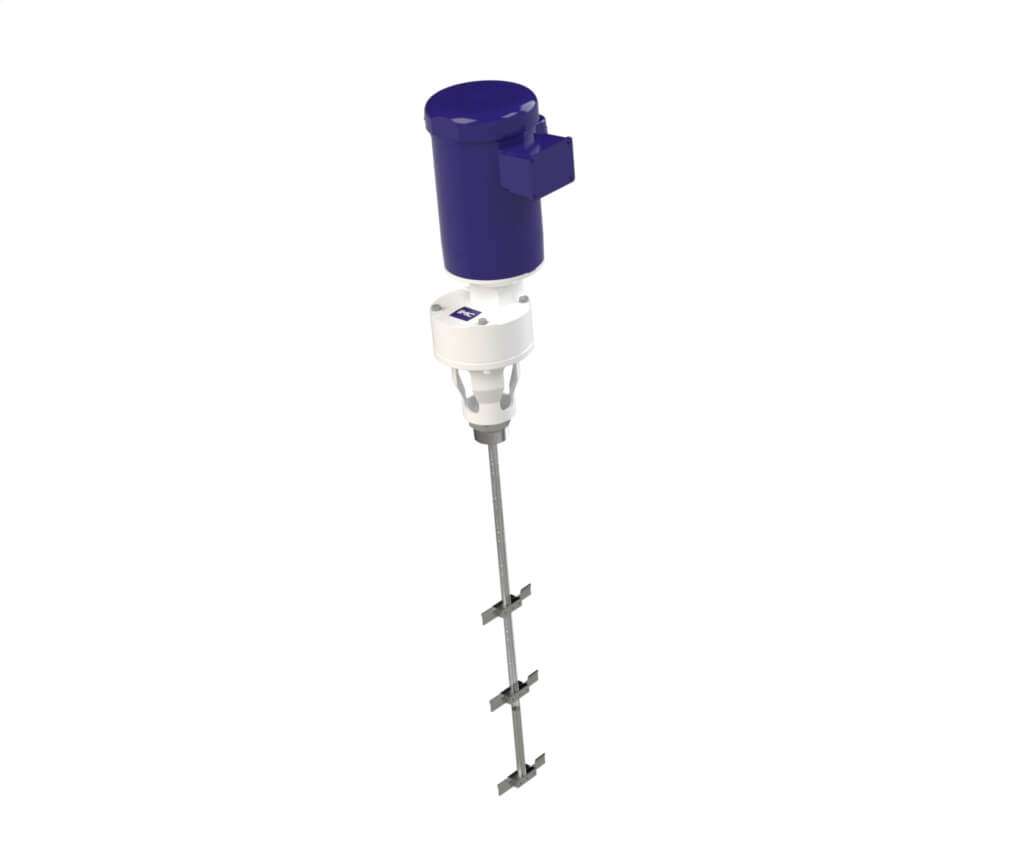

1/2 HP Variable Speed Gear Drive Bung Mount Mixer

$3,164.00

Lead Time: 3-4 Weeks
IMC Part: 6140501-9000 Categories: , ,

Description

IMC DBEG gear drive bung mount drum lid mixer is ideal for mixing medium to high viscosity materials and to re-suspend settled materials. This model is designed to thread onto a 2″ NPT bung opening. The geared design provides a strong 5:1 gear ratio to help produce more torque for those tough jobs only IMC mixers can handle. This bung entering design allows our mixer to fit on almost any drum. All models come equipped with Model BBO opening blades to fit into drum openings. TEFC models include cord, switch, and a plug. VFD models include a speed controller mounted on the motor. Explosion proof models have motor leads only. Other options are available, contact us for a quote!

Specifications

IMC Part

6140501-9000

IMC Model

IMC-DBEG-04-12-V

Track Inventory

Yes

HP

0.5

Speed Controller

Yes

Motor Type

TEFC

Frame

56C

Impeller Type

BBO

Impeller Diameter

4"

Impeller Attachment

Set Screw

Impeller Material

304 SS

Number of Impeller

3

Phase

1

Mount

Bung Entering

Mount Dimmension

2" NPT Bung Opening

RPM

0-350

Shaft Diameter

.625"

Shaft Length (in)

32"

Shaft Material

316 SS

Drive

Gear

Gearbox

Yes

Gear Ratio

5:1

Gearbox Frame

Parallel
